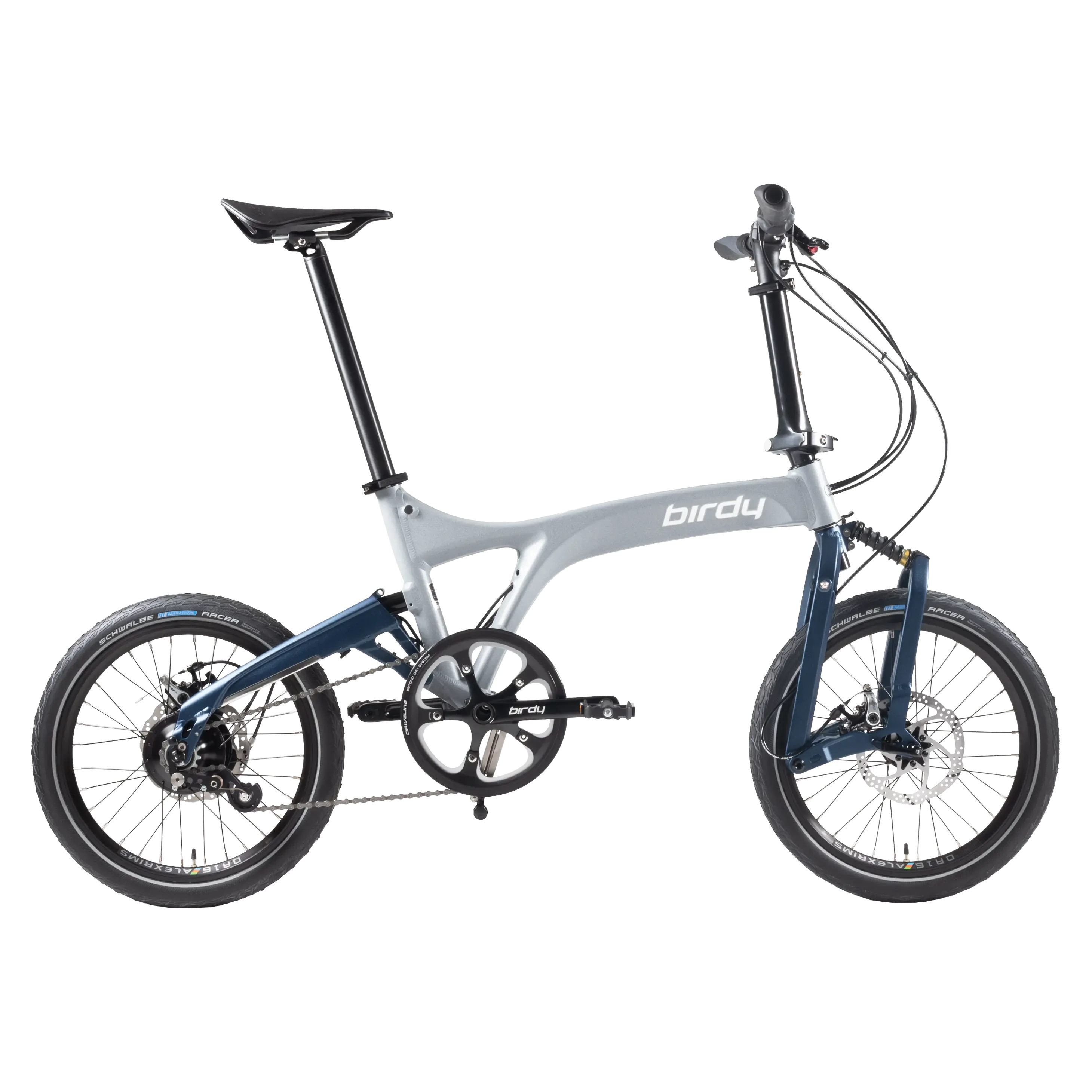

An engineering marvel built for touring enthusiasts
The Birdy Rohloff is equipped with a 14-speed Rohloff internal gear hub that requires little maintenance and has a wide range of gears to tackle a variety of terrain and riding conditions. It provides smooth and precise shifting, even under load or when stopped. This exceptional performance and reliability makes the Birdy Rohloff a top choice for discerning cyclists who demand the highest quality bikes to bring them around the world.

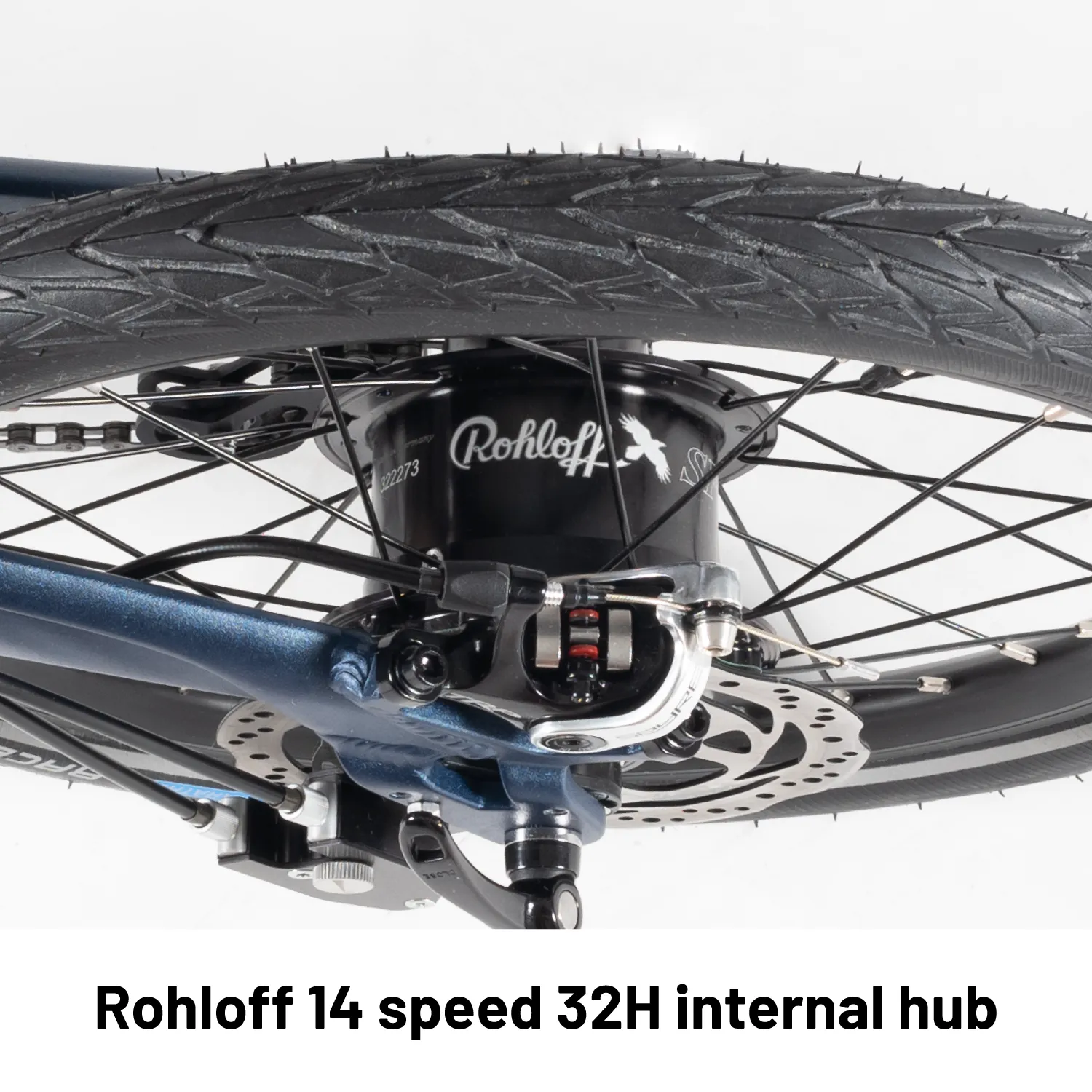

Rohloff Internal Gear Hub
The Rohloff hub is designed as an internal gear hub, which means the gears are located inside the hub of the rear wheel rather than the outside of the frame. This design allows for smooth, precise gear changes. The hub is also sealed, which protects it from dirt and debris, ensuring exceptional durability and low maintenance. This makes it a popular choice among cyclists demanding high performance and dependability.

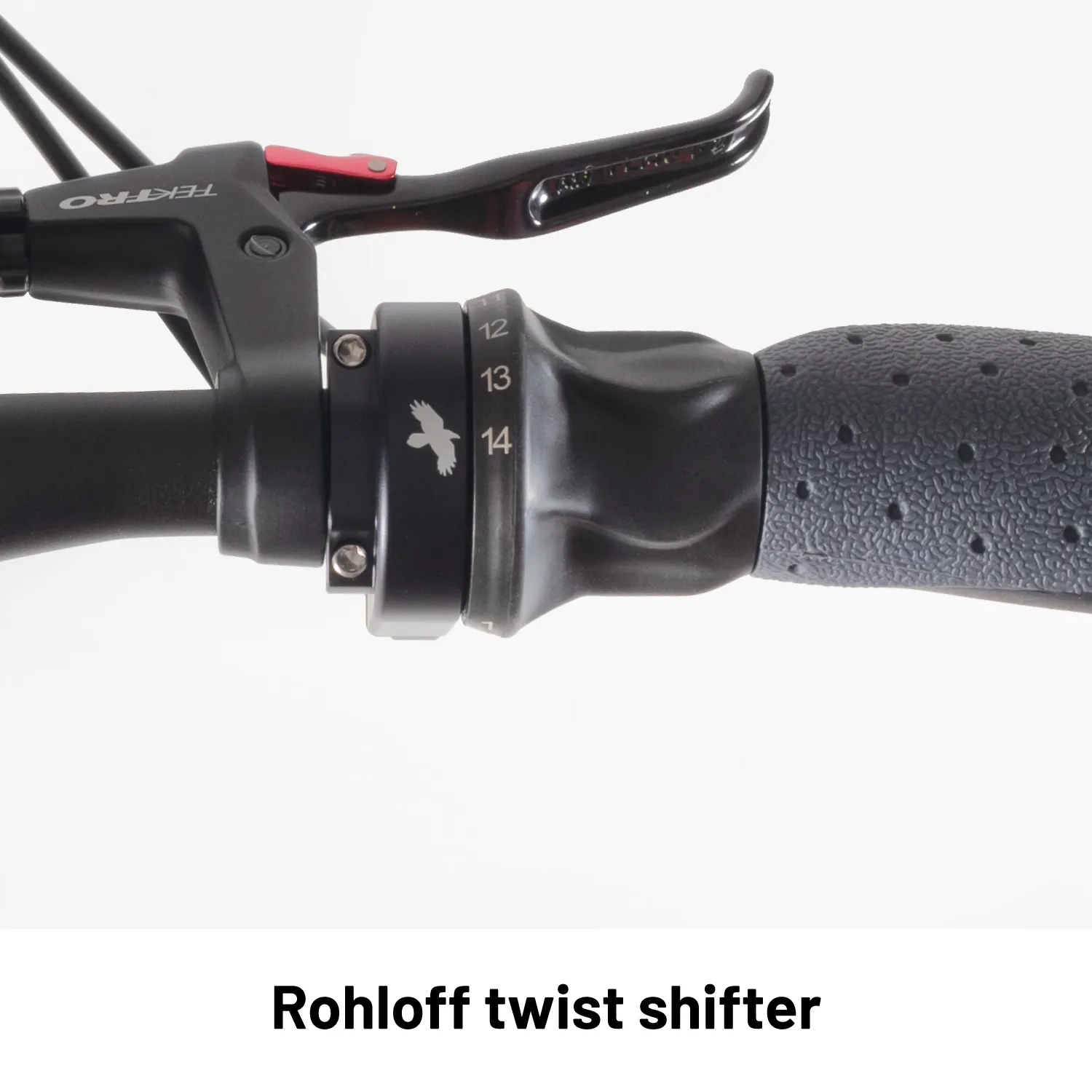

Rohloff Twist Shifter
The Rohloff Twist Shifter is both easy to use and very precise, allowing cyclists full and effortless control over their bike. Thanks to the internal Rohloff hub, cyclists can jump up to 8 gears with a single twist of their wrists, even when the bike is stationary.

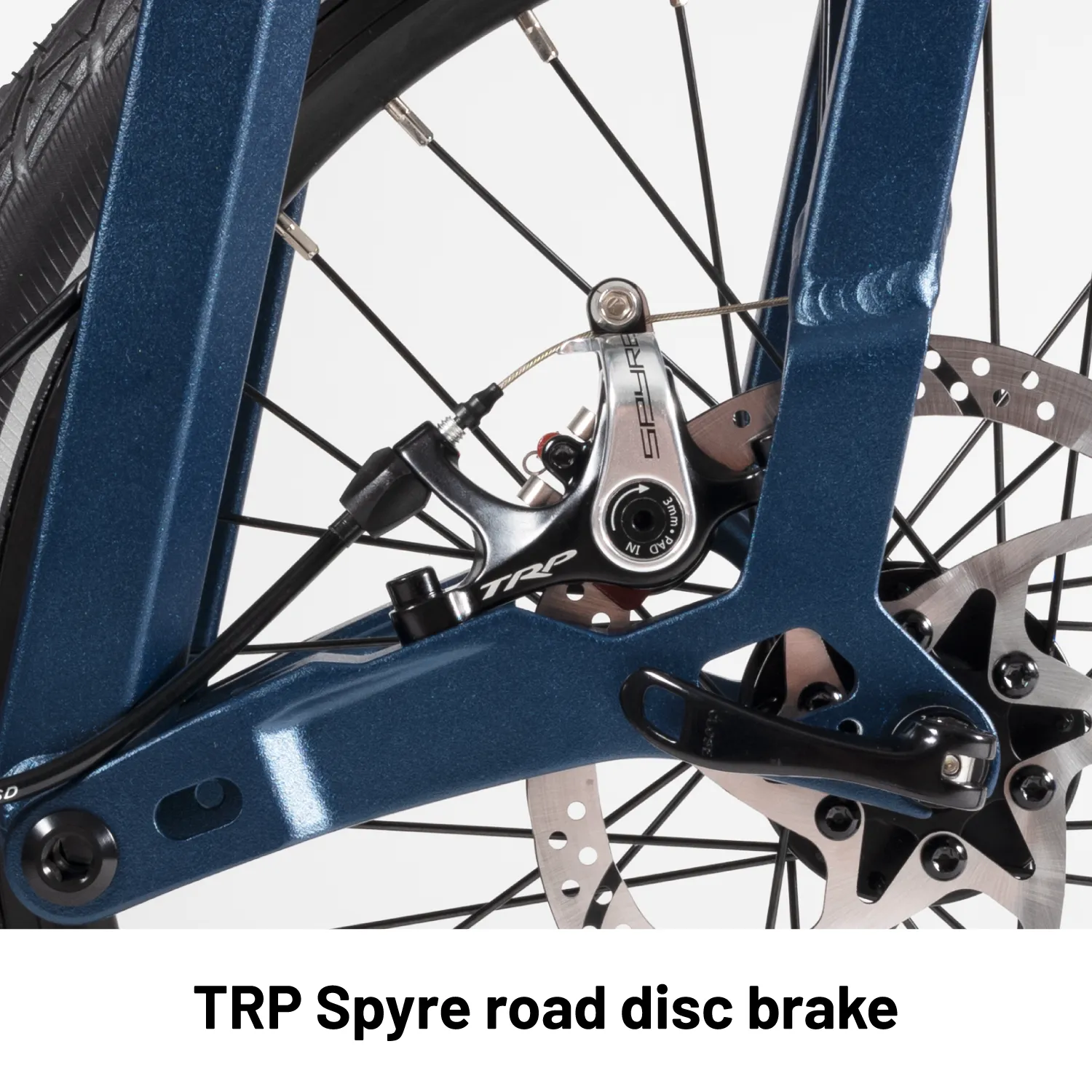

TRP Spyre Disc Brakes
The dual-sided actuation of the Spyre mechanical disc brake ensures even and consistent pad wear, resulting in superior braking performance and improved safety. Its dual piston-actuated caliper provides precise clamping force, eliminating rotor flexing.
Specifications

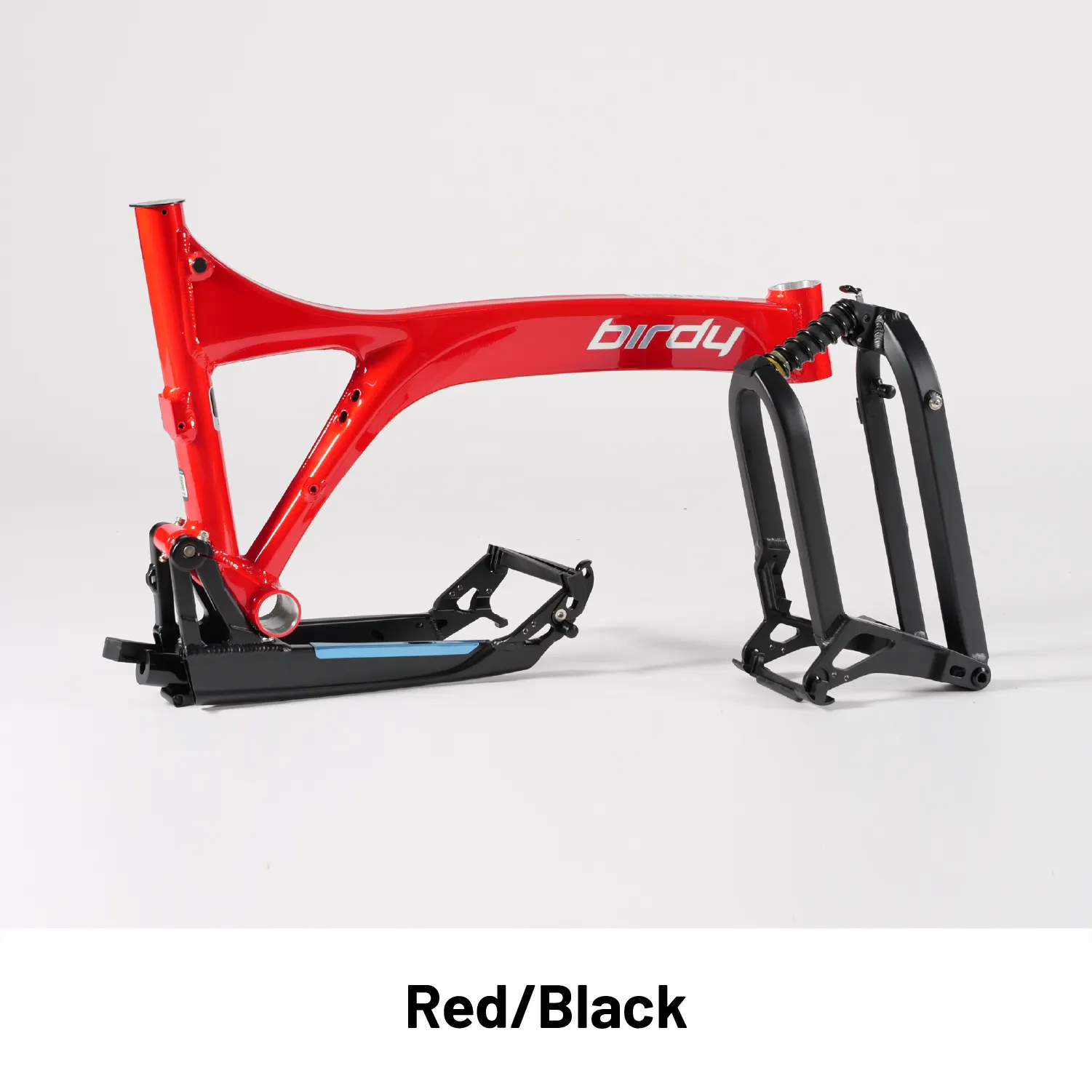

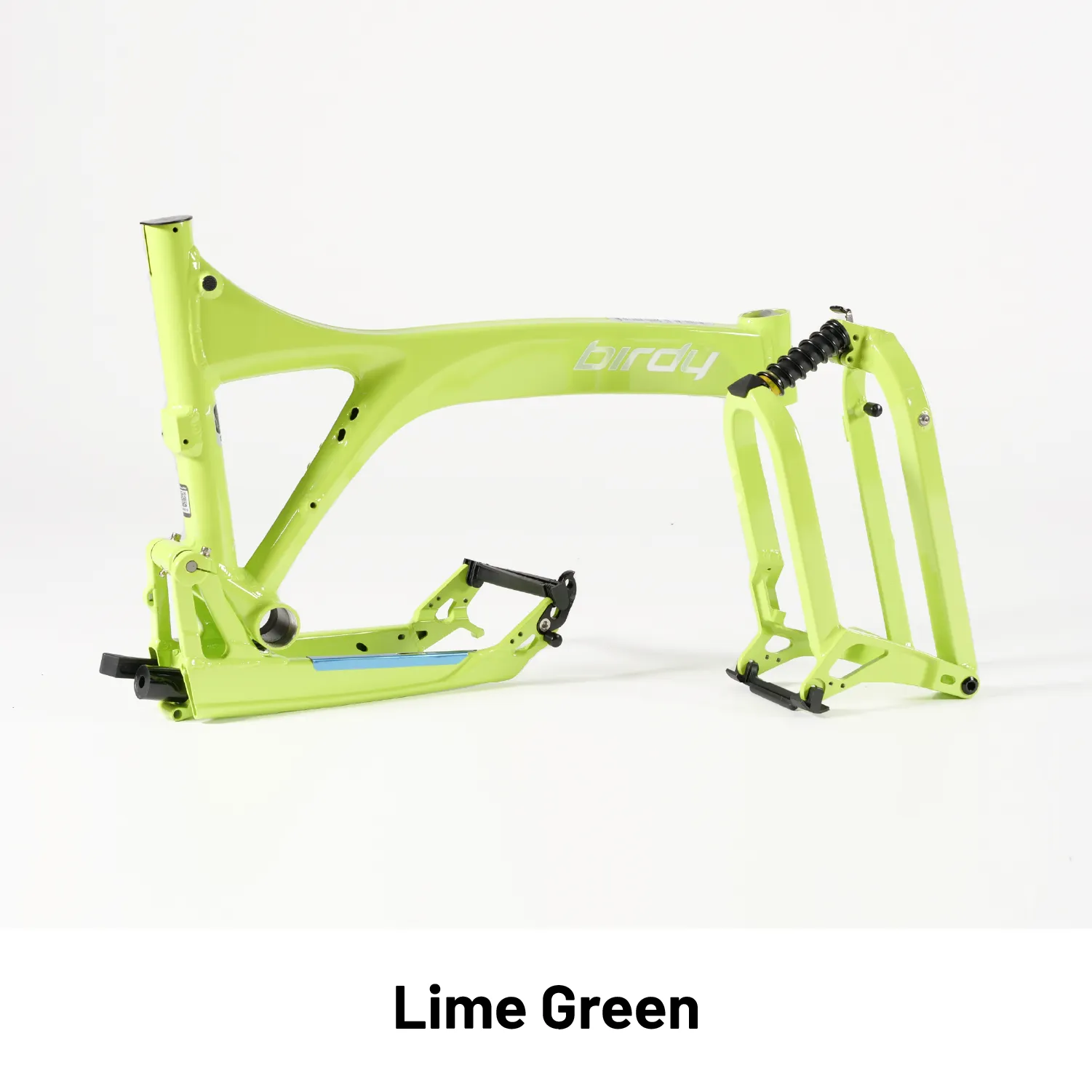

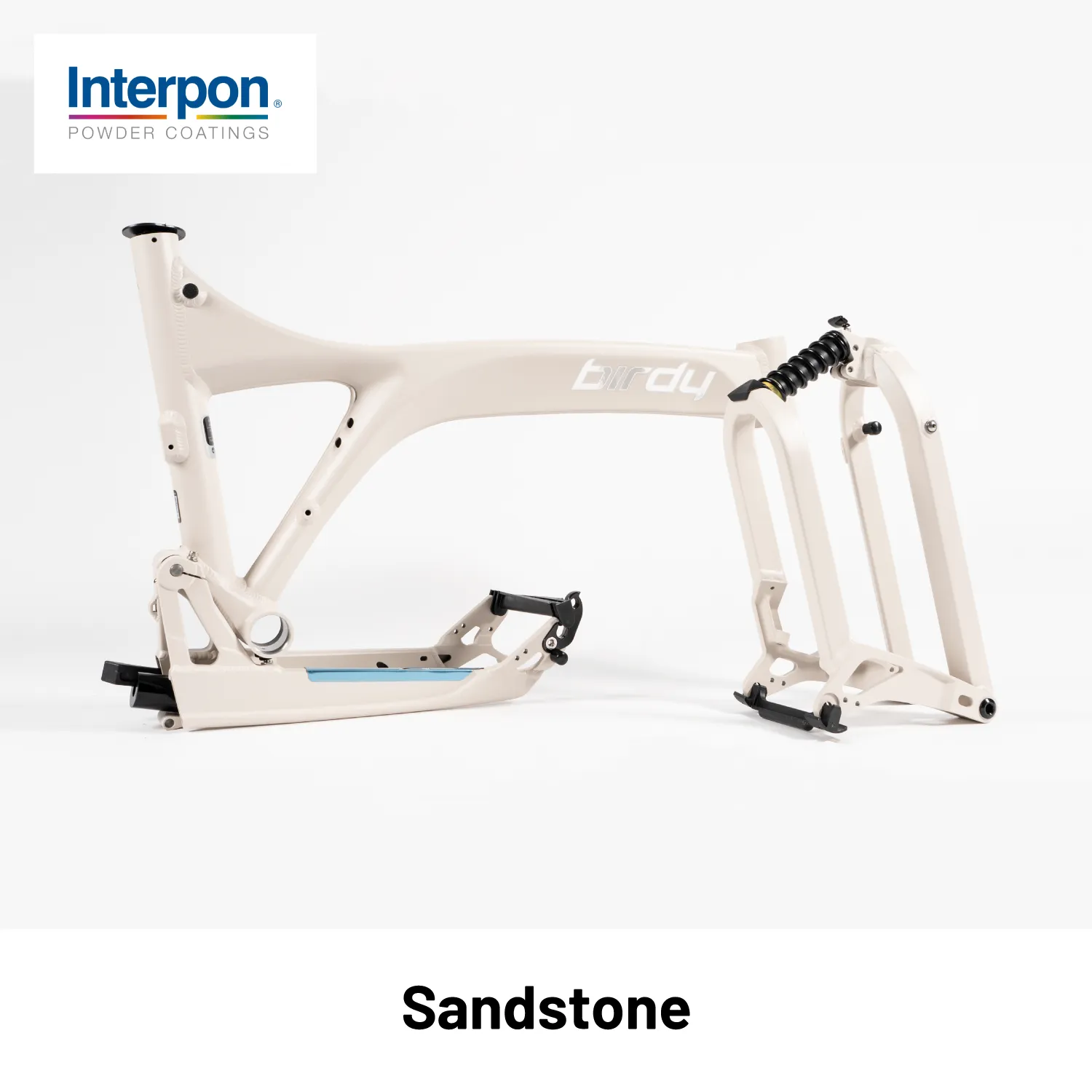

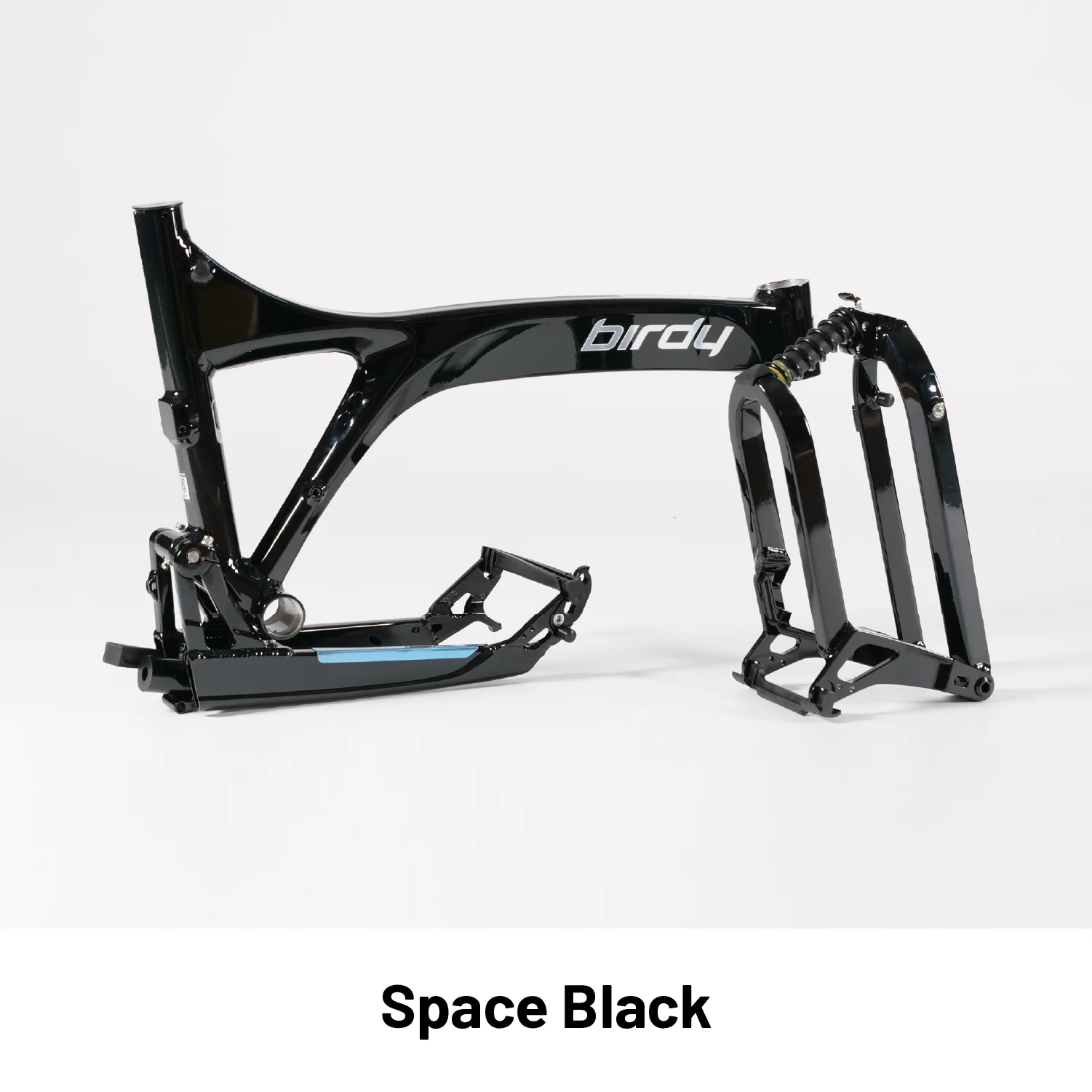

Frame

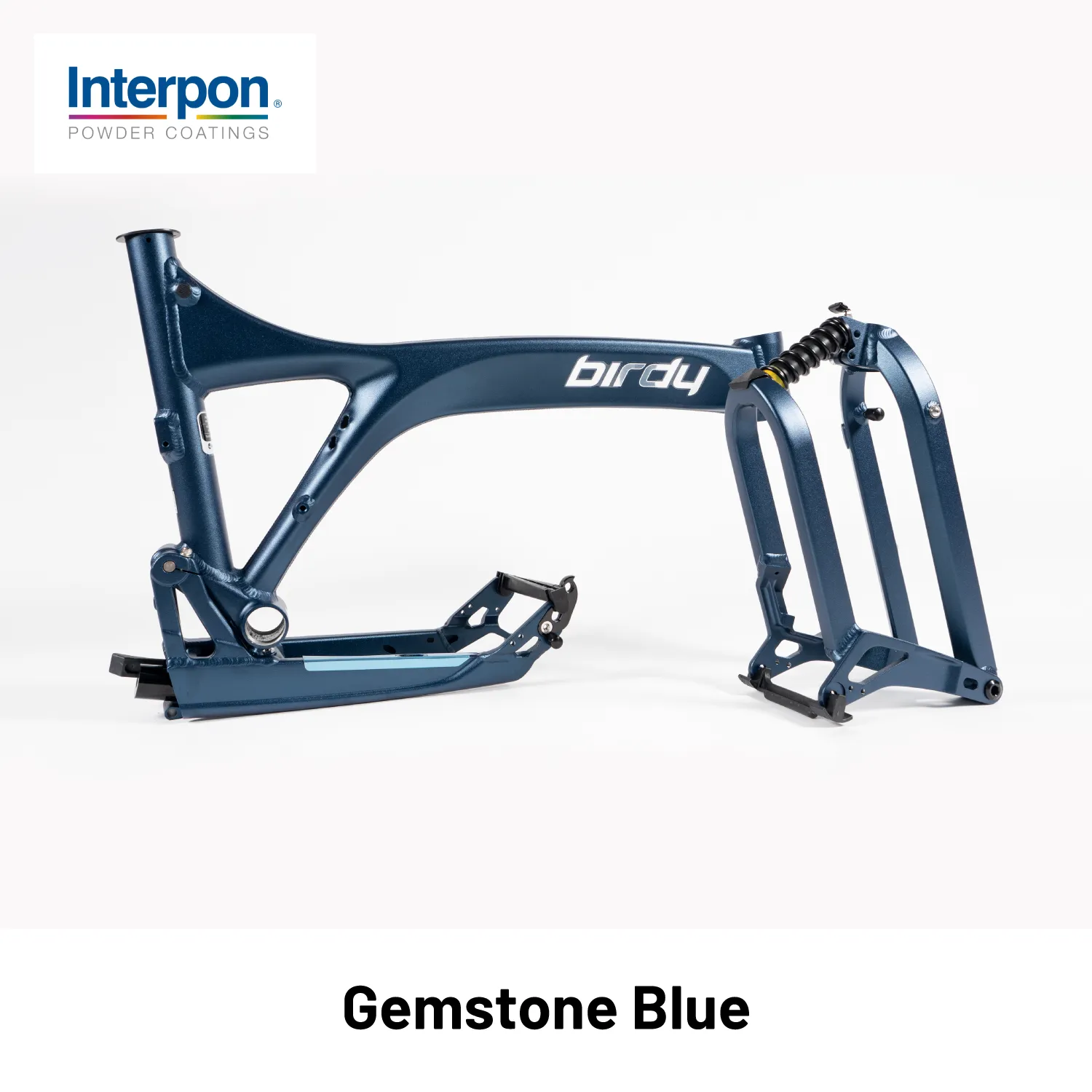

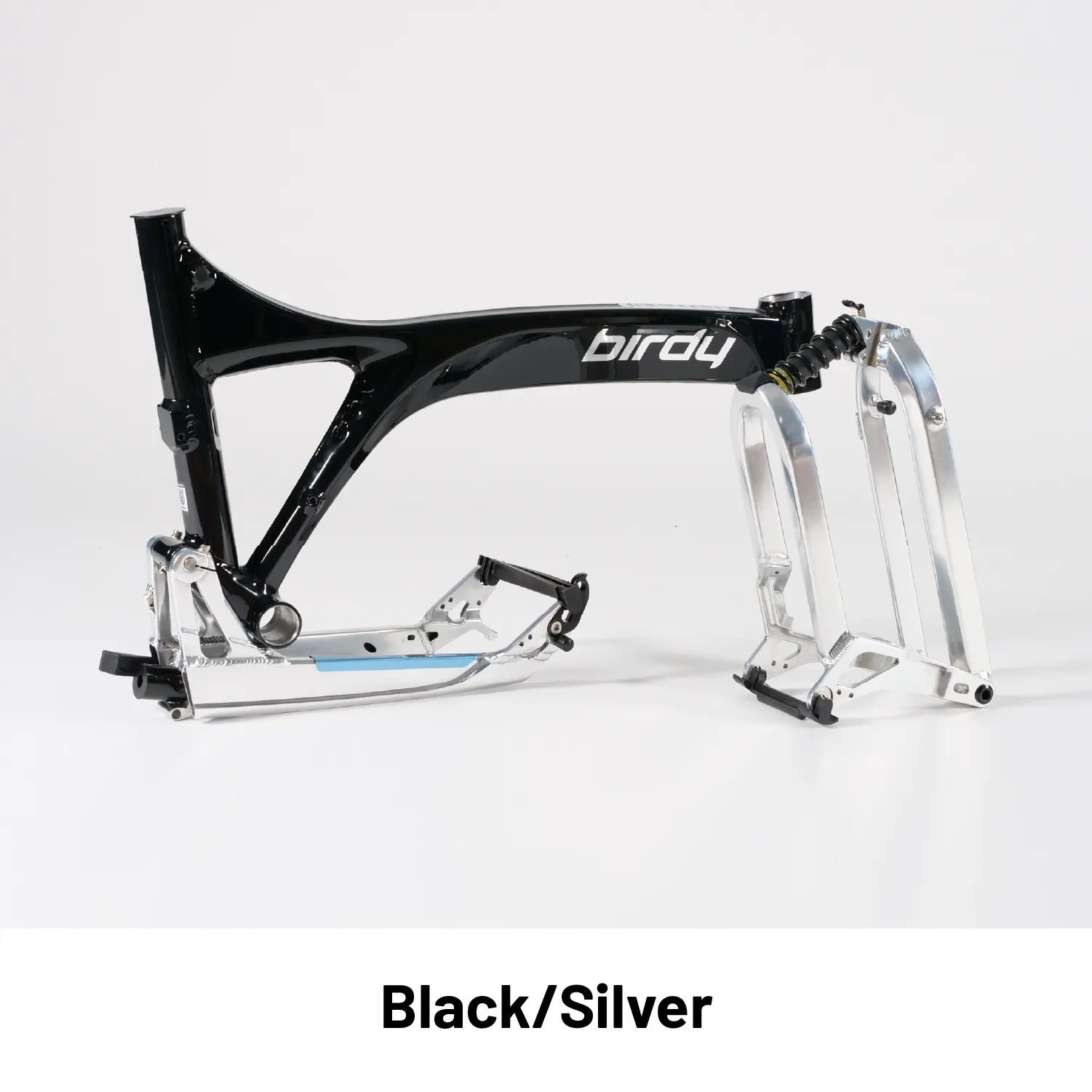

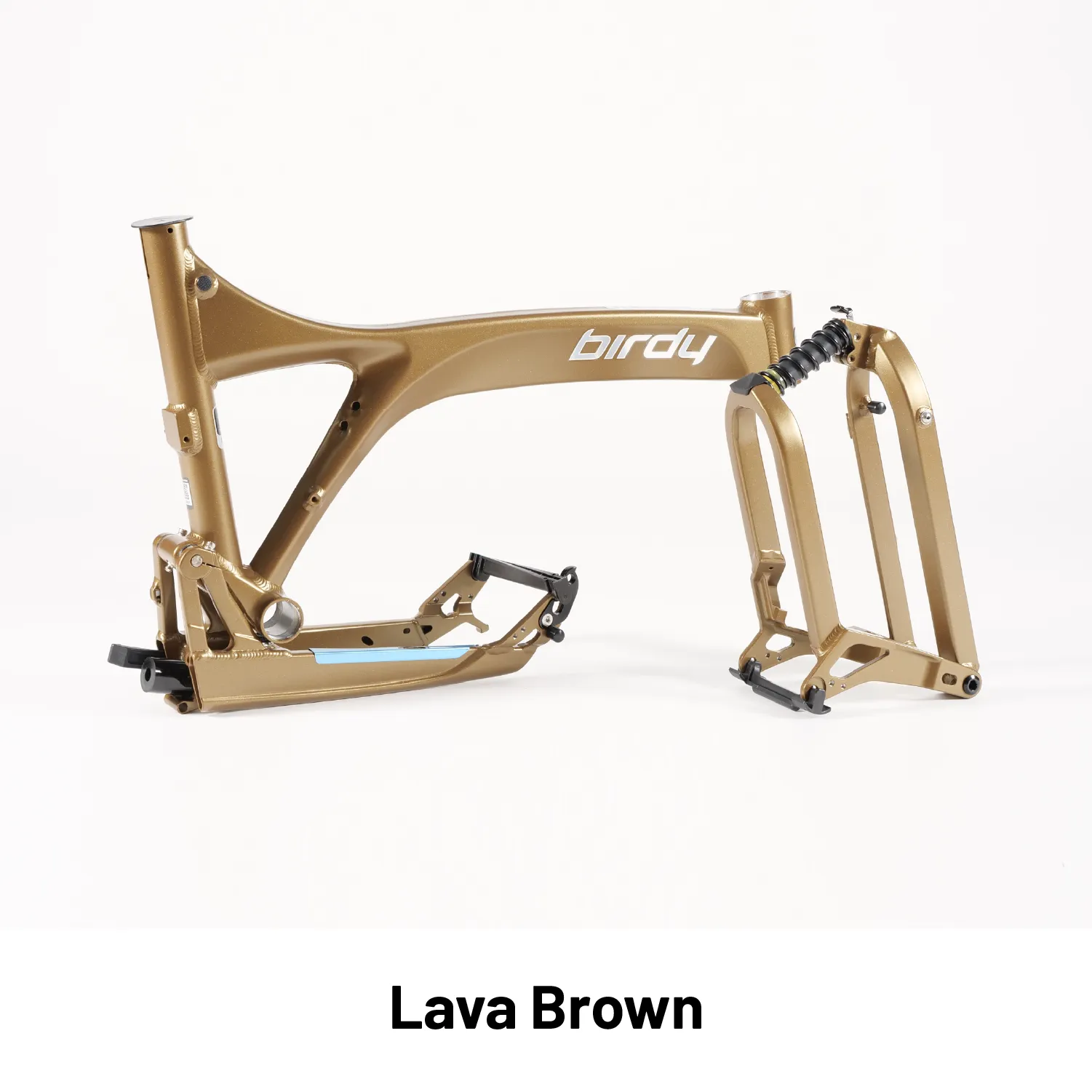

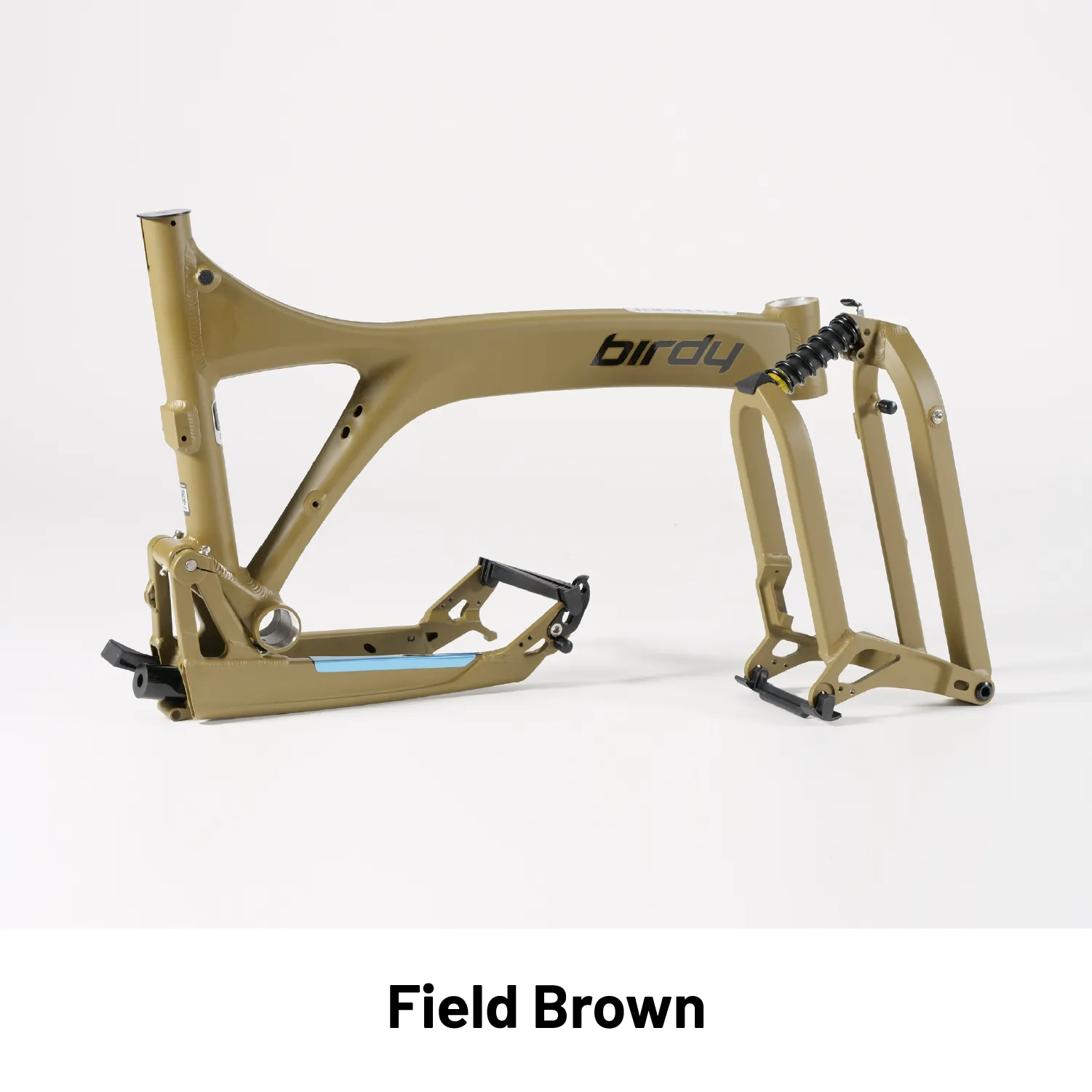

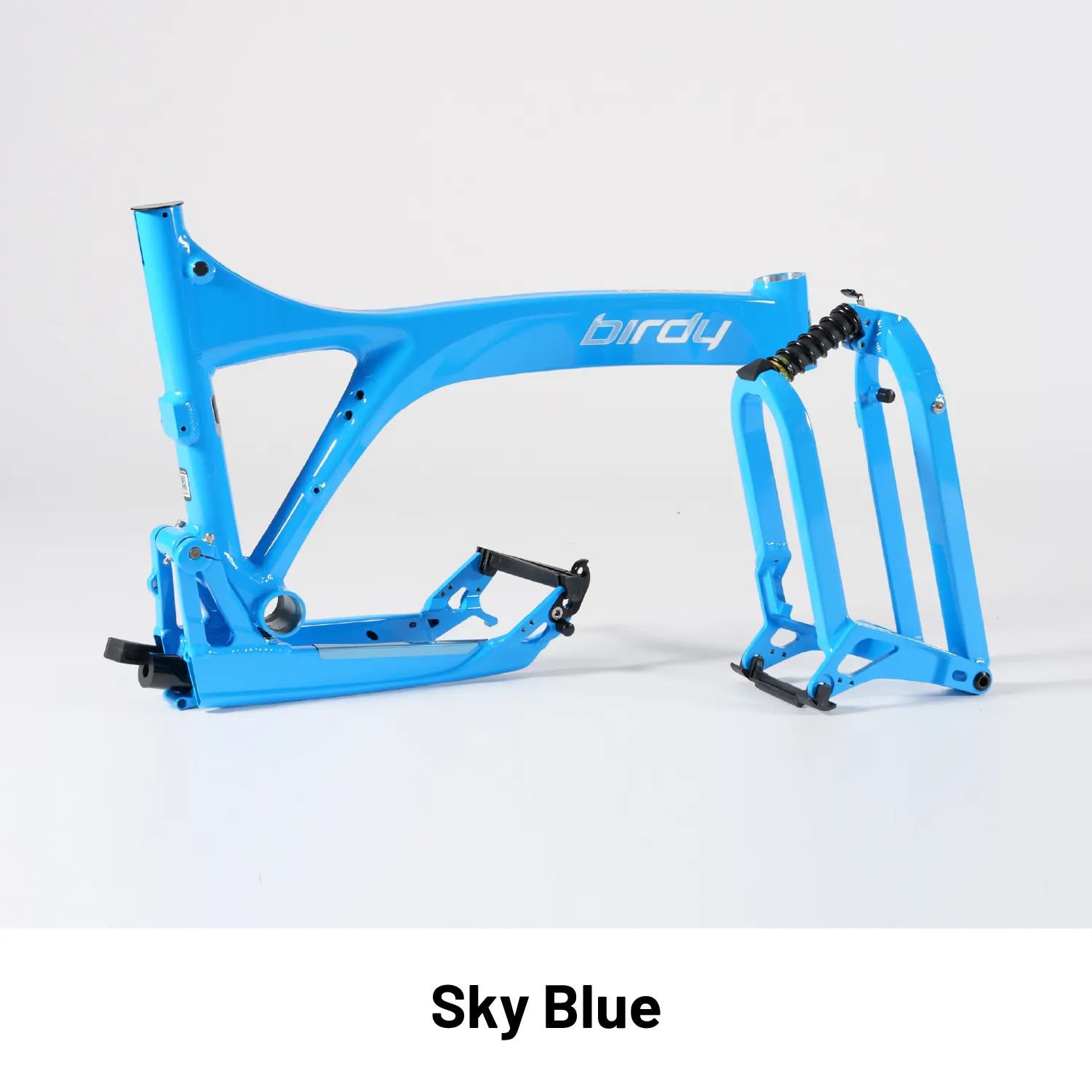

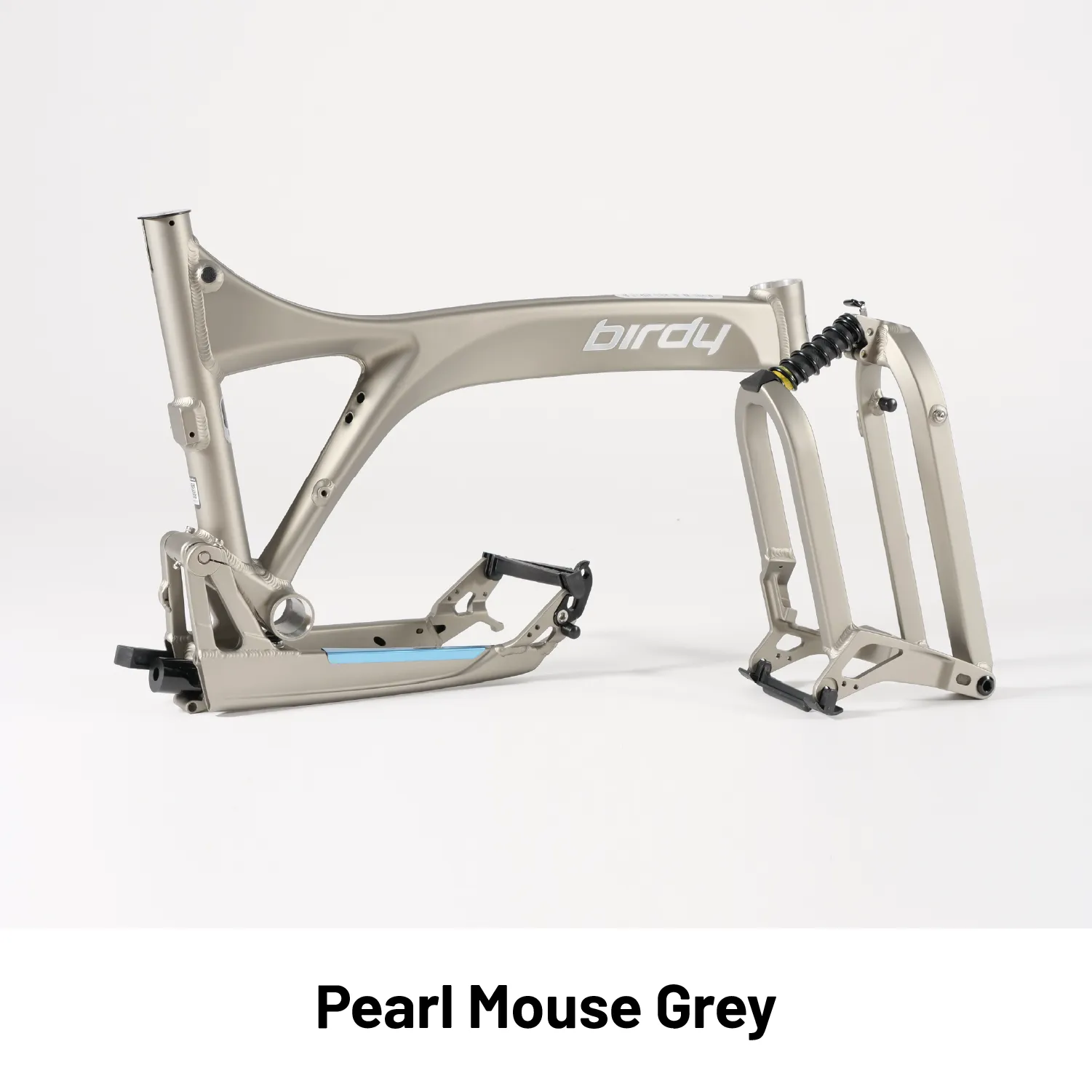

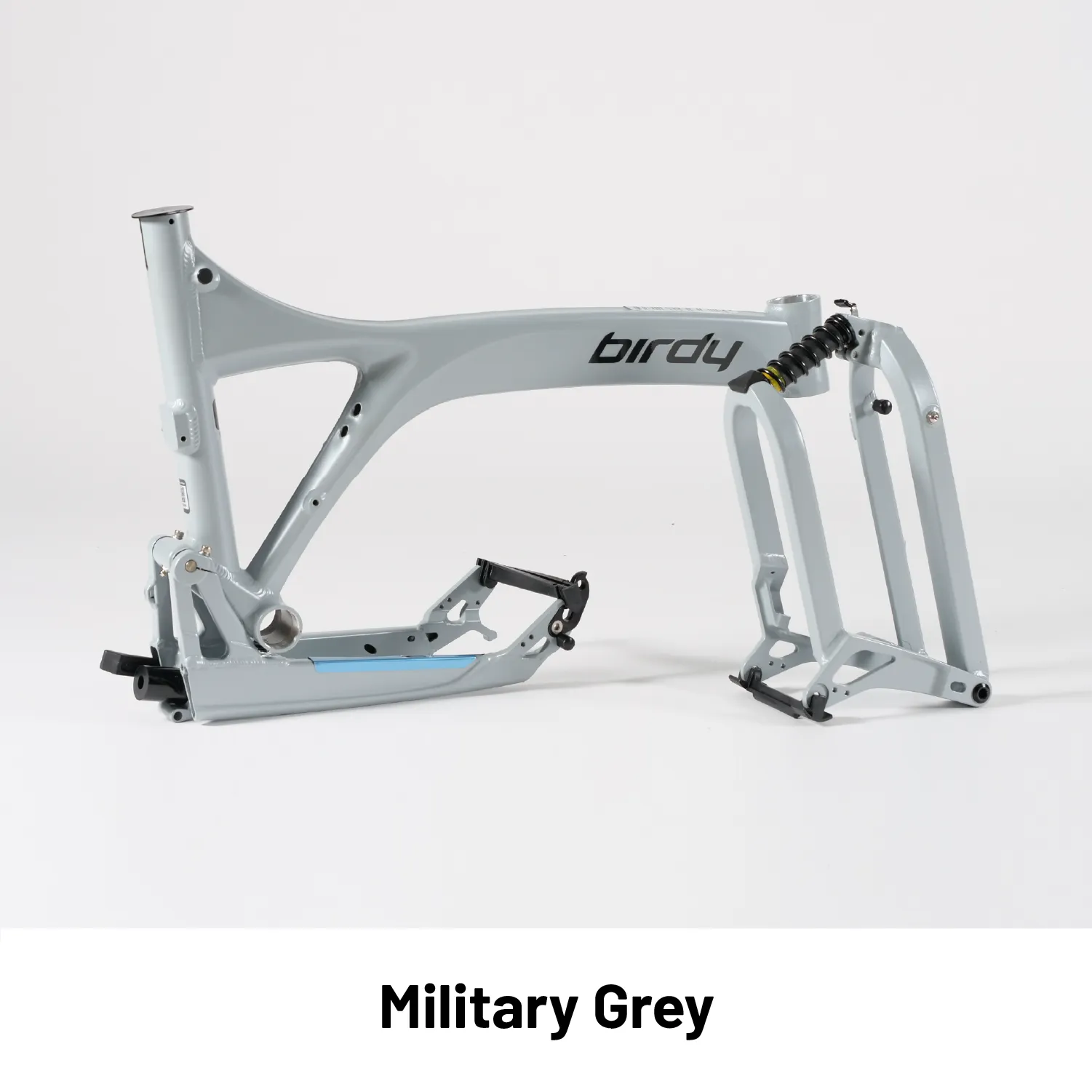

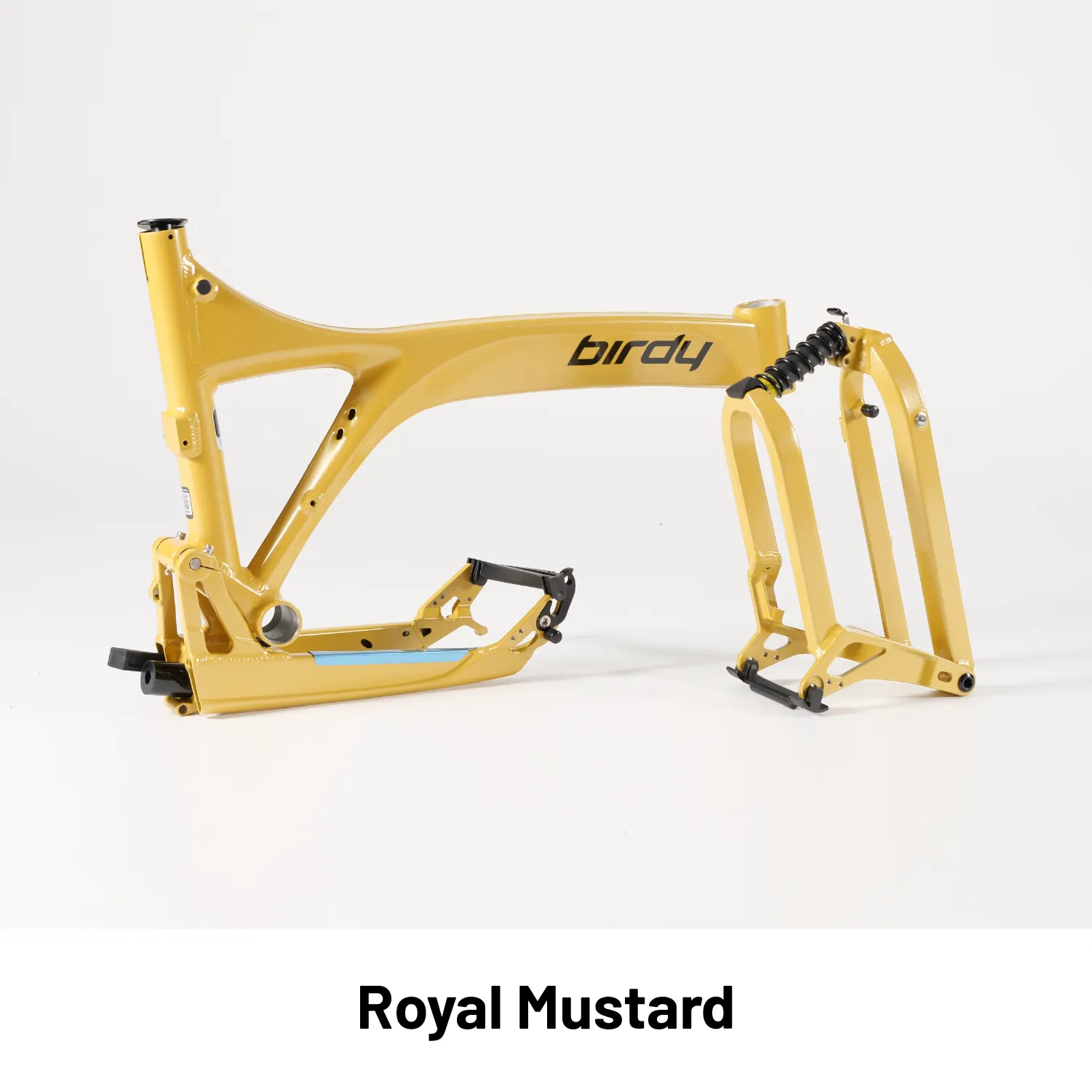

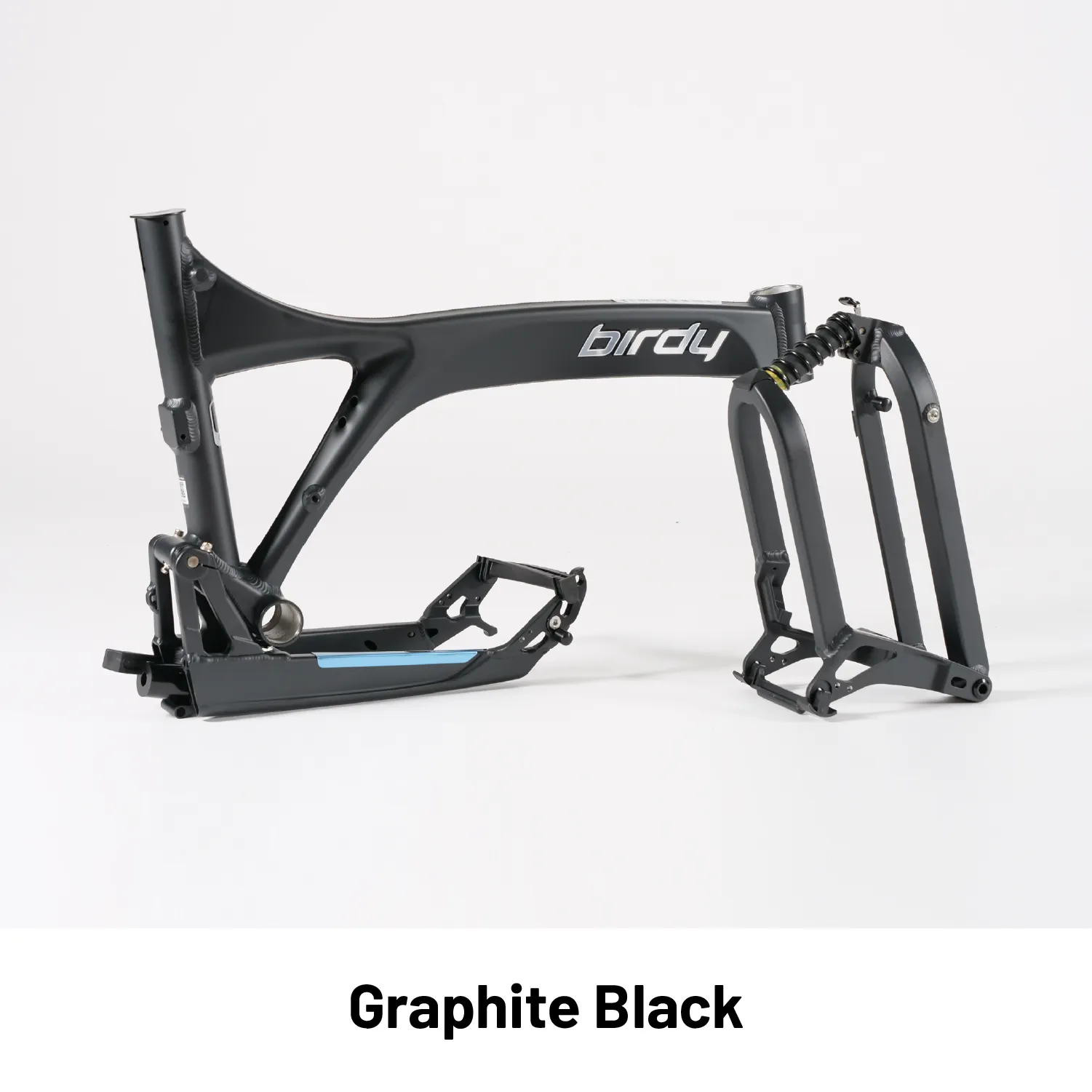

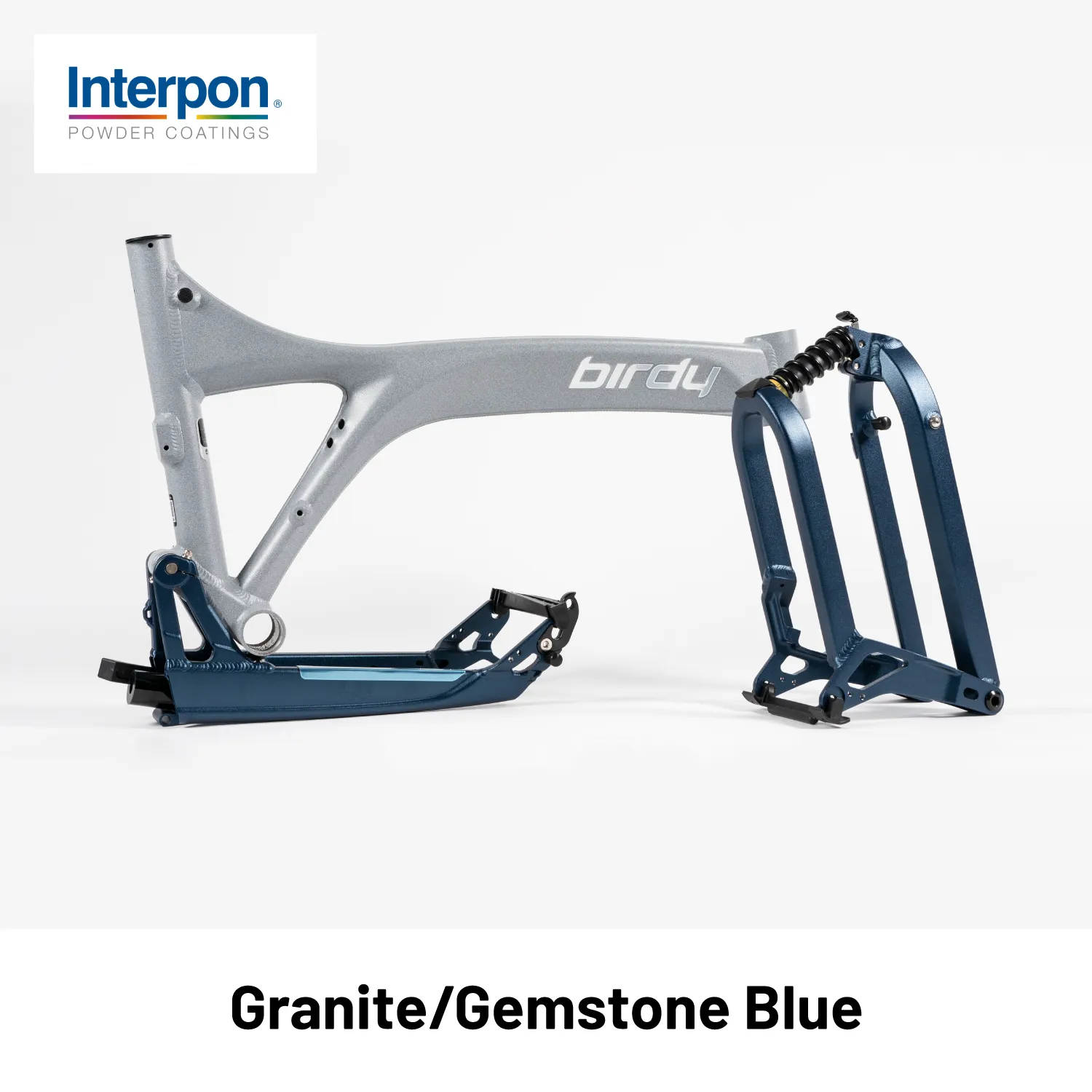

| Frame | Birdy G3 Monocoque 7005-T6 Aluminium |
|---|---|

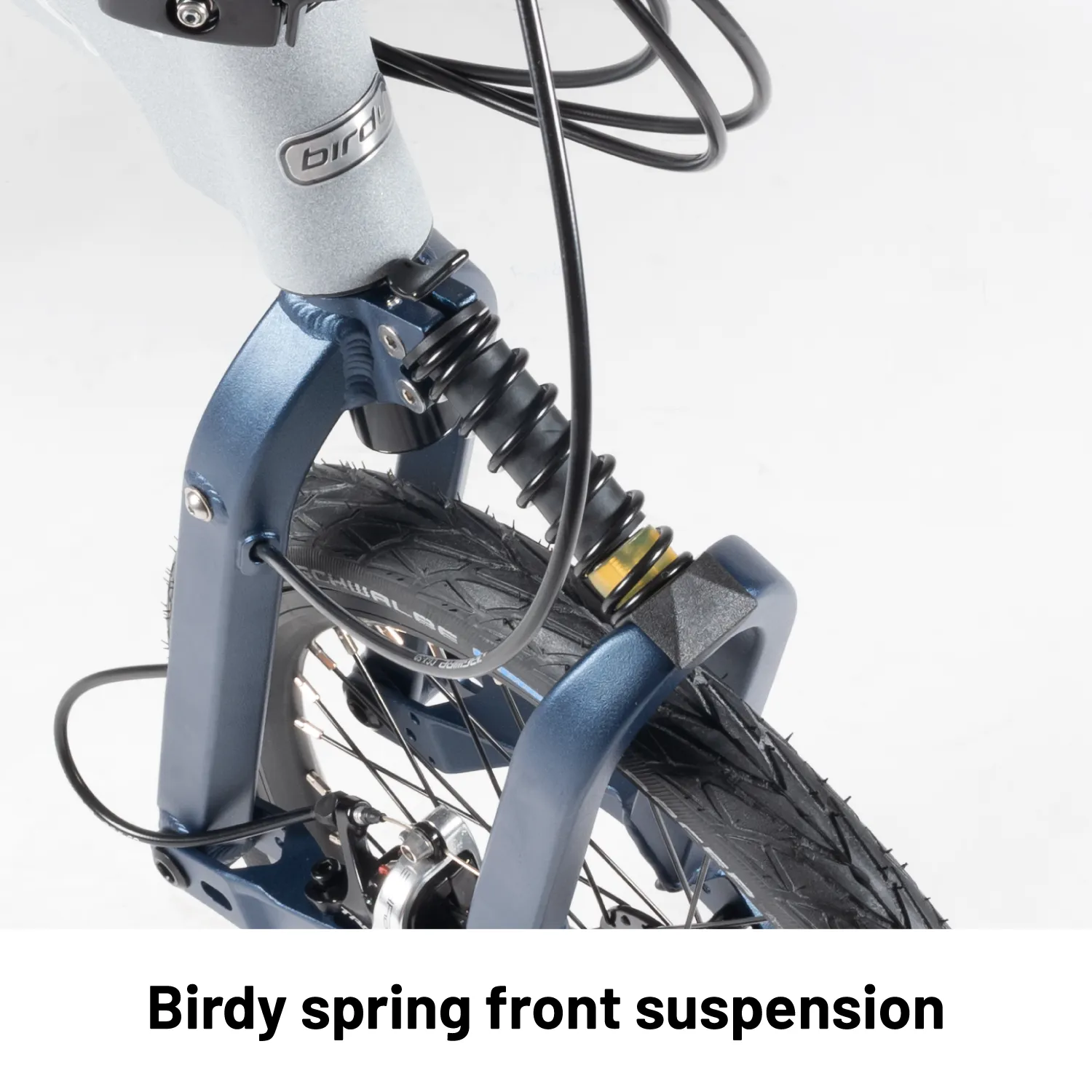

| Fork | Hydroformed Front Suspension Fork w/ Disc Brake Mount |
| Rear Suspension | 90D PU Elastomer |
Drive Train
| Bottom Bracket | Driveline Hollowtech II compatible threaded 68mm |
|---|---|

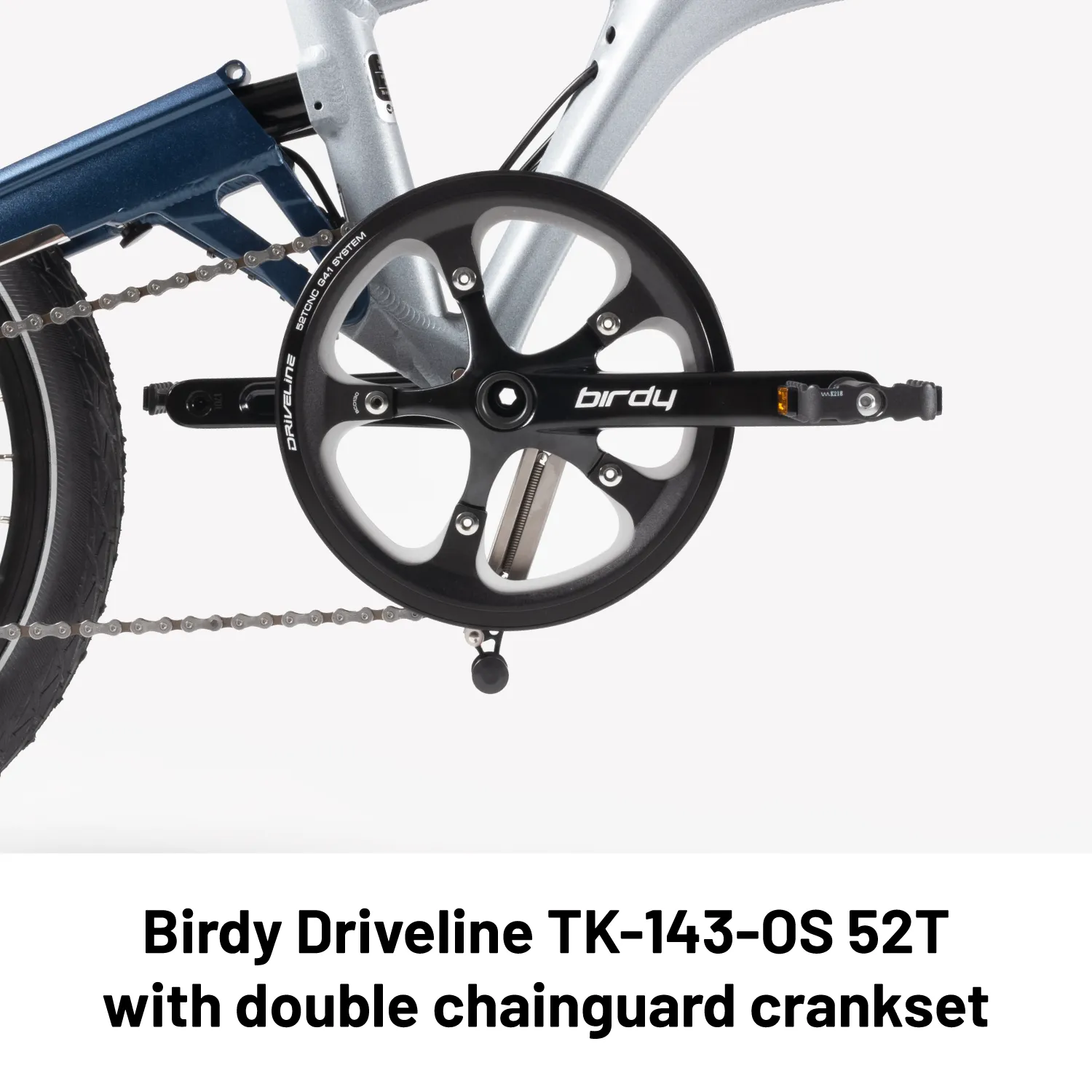

| Chainwheel | Birdy Hollowtech II compatible 52T 170mm BCD:130mm w/double chainguard |
| Chain | Shimano HG-53 chain |
| Cassette | Rohloff 13T Cog *Rohloff SPEEDHUB 500/14 Disc* *Internal 14 Gear Anodized Black* *IGR 0.279-0.316-0.360-0.409-0.464-0.528-0.600-0.682-0.774-0.881-1.000-1.135-1.292-1.467* *IGR = Inner gear ratios (hub rotation per sprocket rotation)* |
| Chain Tensioner | Rohloff #8250 Chain Tensioner |
| Shifter | Rohloff twist shifter |
Brakes
| Brakes | TRP Spyre Disc Brake |
|---|---|
| Disc Rotor | Front: 6-Bolt Disc Brake Rotor 160mm Rear: Rohloff 4 Bolt Disc Rotor 160mm |

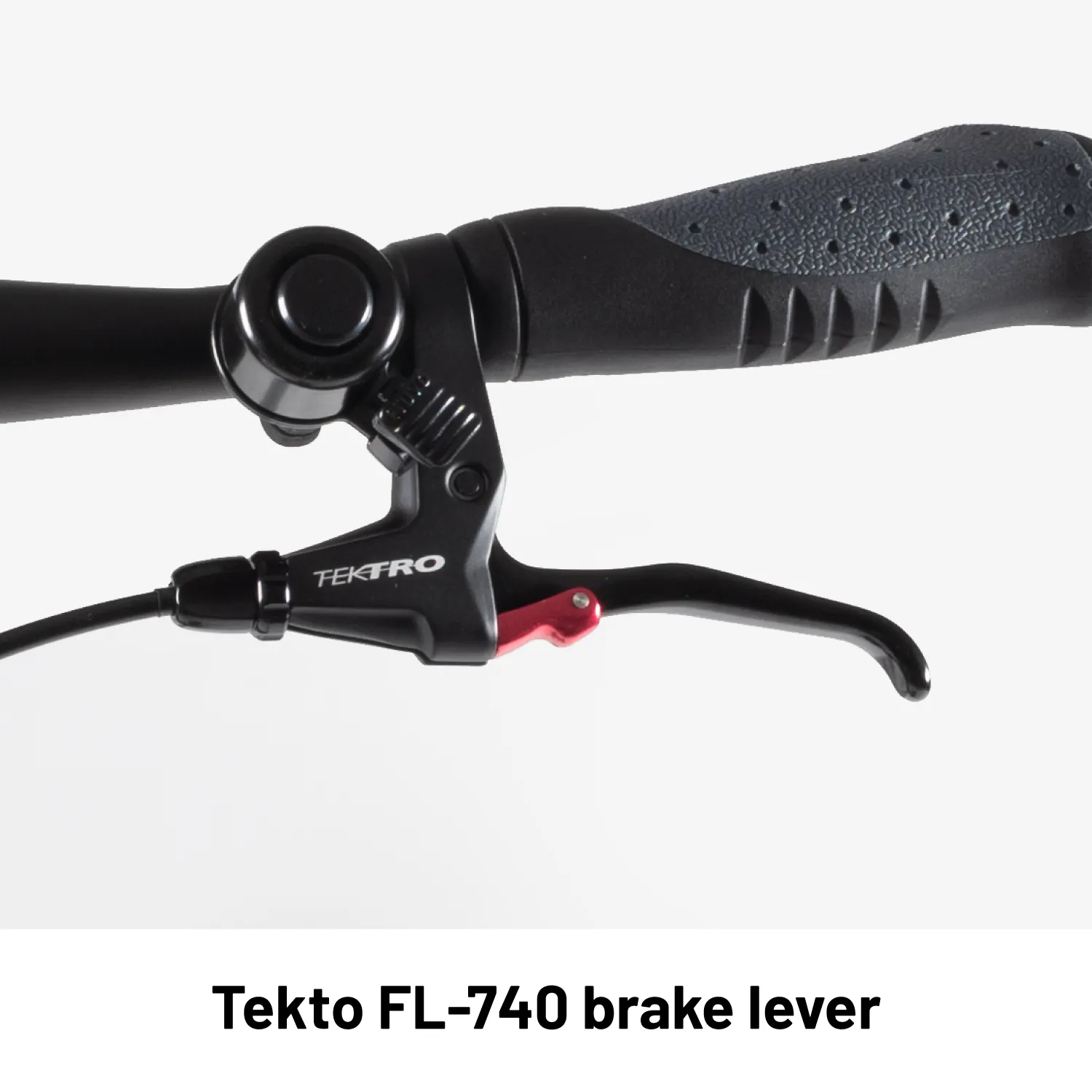

| Brake Lever | TEKTRO FL-740 QR type 3-finger |
Wheels

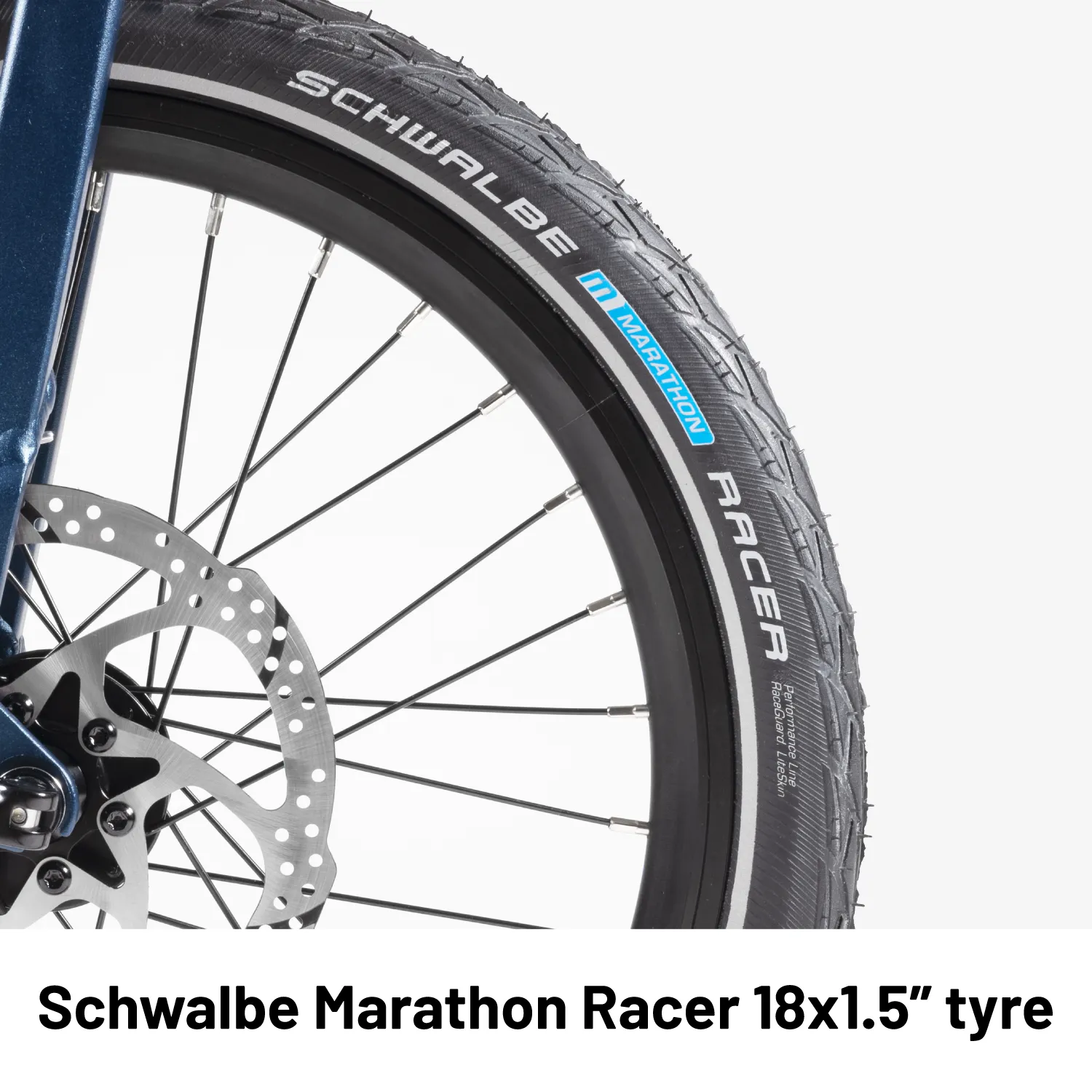

| Tyre | Schwalbe Marathon Racer 18×1.5″ (40-355) |
|---|---|

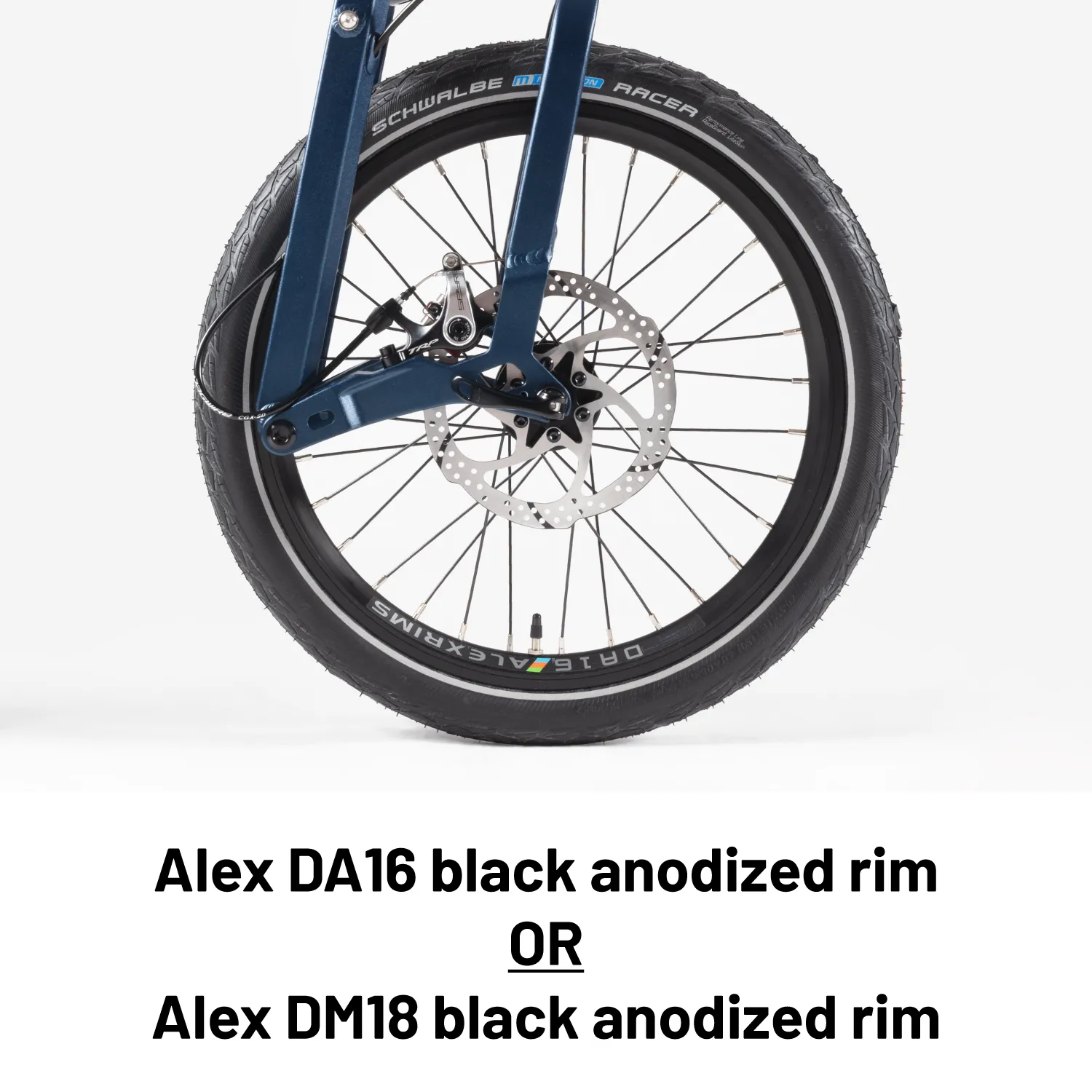

| Rim | Alex DA16 black anodized OR Alex DM18 black anodized |
| Hub | F: Birdy 32H / R: Rohloff 14-speed 32H Black |
| Spoke | Stainless steel 2.0mm (14G) |
Cockpit
| Head Sets | Semi integrated 1-1/8″ |
|---|---|
| Handlebar | Horizon AL6061T6 butted, 31.8x540mm 10D |
| Stem | New Birdy double lock adjustable stem 10 degree (21 degree stem is sold separately at $425) |
Seat
| Seat Post | Birdy SP61R.1 34.9mm AL7075 hard-anodized w/ laser scale |
|---|---|
| Saddle | Selle SanMarco Model X |
Accessories
| Pedals | VP-197 black cage w/BS reflectors |
|---|---|
| Chain Tensioner | PCI chain tensioner |
| Bell | Bell (Black) |
| Optional Accessories | (Kickstand, Rear Rack, Front Rack, Mudguards, etc. are Sold Separately) |
Dimensions
| Estimated Dimensions | Folded: 60cm(H) x 39cm(W) x 72cm(L) |
|---|---|
| Rider Height | 145 – 185cm |
Weight
| Weight | 12kg (incl. saddle & pedals) |
|---|---|
| Max Load | 110kg incl. rider & luggage |
Important notes
- Specifications can change without prior notice.
- Images are for illustration purposes only. Please refer to the specifications.
- International Buyers - Please Note: all import duties, taxes, and charges at the destination country are not included in the item price or shipping cost. These charges are the buyer’s responsibility.
- All bikes purchased cannot be returned, refunded, or exchanged.
- Warranty is non-transferrable.
